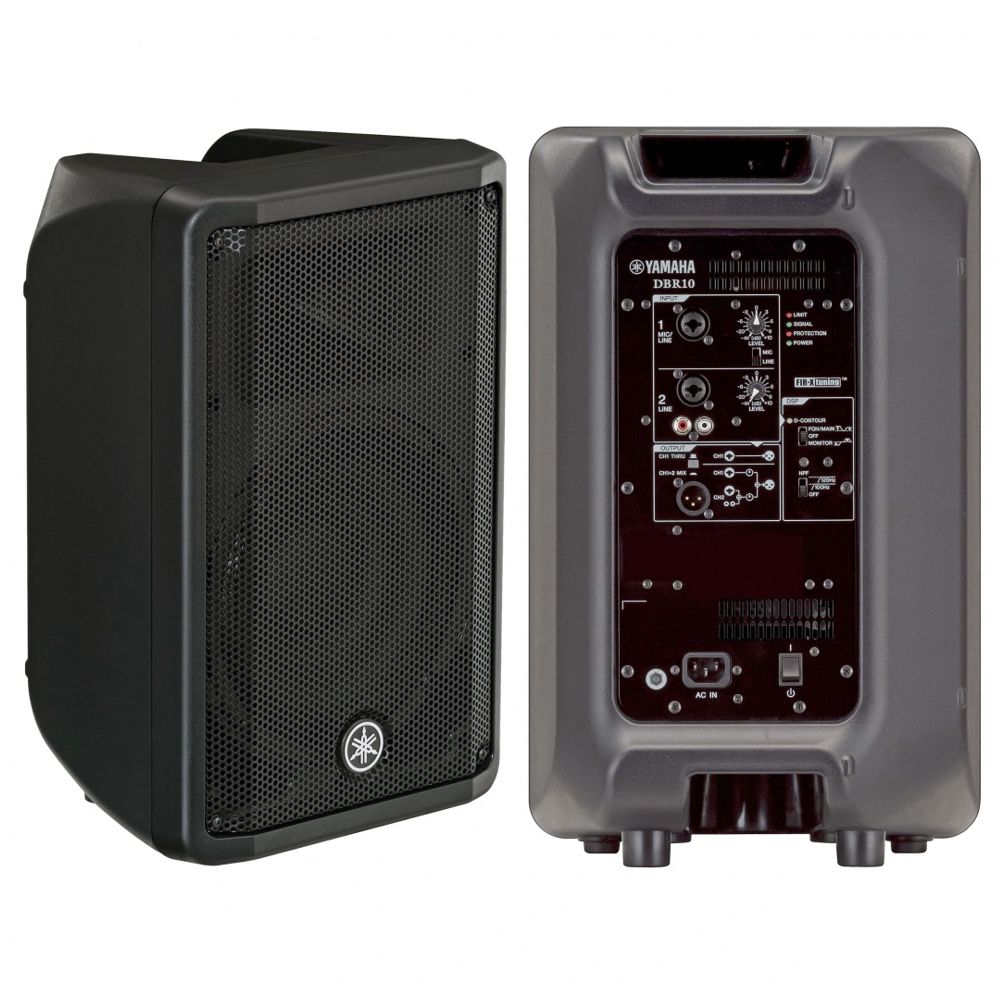

Yamaha DBR10 700W 10-inch Powered Speaker

Description

Yamaha DBR10 700W 10-inch Powered Speaker

Yamaha DBR10 10″ Active Speaker Features at a Glance:

• FIR-X tuning delivers excellent sound quality with high resolution and a smooth frequency response
• D-Contour optimizes the DBR10 for main speaker or floor monitor use
• Onboard mixer lets you select either a direct output or a mixed output
• Comprehensive inputs for mixer, musical instrument, or media players
• Amplifier and power supply design provides powerful output from a compact speaker
• DSP-controlled protection functionality promotes optimum reliability

Tech Specs

• Powered:Yes
• Power Configuration:Bi-amped
• LF Driver Size:10″ woofer
• HF Driver Size:1″
• LF Driver Power Amp:500W
• HF Driver Power Amp:200W
• Total Power:700W
• Inputs:2 x XLR-1/4″ combo, 1 x Dual RCA Stereo
• Outputs:1 x XLR
• Frequency Range:55Hz-20kHz (-10dB)
• Crossover Frequency:2.1kHz
• Maximum Peak SPL:129dB
• Horizontal Coverage Angle:90 Degrees
• Vertical Coverage Angle:60 Degrees
• Enclosure Material:Plastic
• Mounting Options:Pole Mount with 1.37′ socket, Floor Wedge, 2 x M8 Fly Points
• Power Source:Standard IEC AC cable
• Height:19.4″
• Width:12.1″
• Depth:11.4″
• Weight:23.2 lbs.
• Manufacturer Part Number:DBR10
